Product Name:TYE1245ADP Model Number:TYE1245ADP
descriptions:

Type Unit TYE1245ADP
Rated Voltage(Square Wave) Vp-p 12
Operating Voltage Vp-p 1-30

*Rated Current(MAX)

mA 5

*Min Sound Output at 4.5KHz/10 cm

dB 80
*Resonant Frequency Hz 4500500
Capacitance at 120Hz pF 600030%
Operating Temperature we -20 - +70
Storage Temperature we -30 - +80
Housing Material MPPO
Weight g 2
*Value Applying at Rated Voltage(resonant frequency,1/2 duty,square wave)

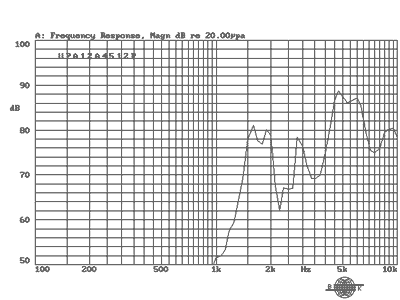

FREQUENCY RESPONSE:
UNIT:mm
Tolerance:0.5mm

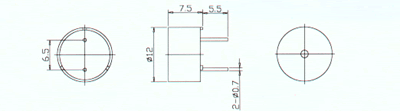

DIMENSIONS:
