Product Name:TYE1340ADP 3V Model Number:TYE1340ADP 3V
descriptions:

Type Unit TYE1340ADP 3V
Rated Voltage(Square Wave) Vp-p 3
Operating Voltage Vp-p 1-25
*Rated Current(MAX) mA 2
*Min Sound Output at 4.0KHz/10 cm dB 70
*Resonant Frequency Hz 4000500
Capacitance at 120Hz pF 1200030%
Lead Pin Material Phosphor Bronze
Operating Temperature we -20 - +70
Storage Temperature we -30 - +80
Housing Material NORYL
Weight g 1
*Value Applying at Rated Voltage
FREQUENCY RESPONSE:
UNIT:mm
Tolerance:0.5mm

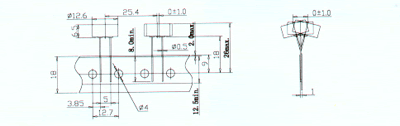

DIMENSIONS:
