Product Name:TYE2220ADM Model Number:TYE2220ADM

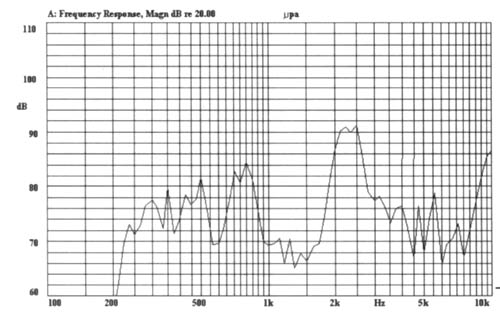

descriptions:     Type Unit TYE2220ADM Rated Voltage(Square Wave) Vp-p 12 Operating Voltage Vp-p 1-30 *Rated Current(MAX) mA 3 *Min Sound Output at 2.048KHz/10 cm dB 85 *Resonant Frequency Hz 2048500 Capacitance at 120Hz pF 2000030% Lead Pin Material Phosphor Bronze Operating Temperature -30-+80 Storage Temperature -40-+80  Housing Material   ABS777 Weight g 3 *Value Applying at Rated Voltage(resonant frequency,1/2 duty, square wave) FREQUENCY RESPONSE: UNIT:mm Tolerance:0.5mm DIMENSIONS:
